Korf Fixed Headshell Tonearms

One Architecture. Three Materials.

Steel. Ceramic. Sapphire.

A phono cartridge traces movements measured in thousandths of a millimeter. Recovering everything pressed into a record groove demands extraordinary precision. Not just from the cartridge itself, but from the tonearm guiding it. Korf’s fixed-headshell tonearms approach that job as a complete structure, combining the arm tube, ceramic headshell, bearing system, and adjustments into an integrated design intended to give the cartridge a stable, predictable platform.

The three models share that underlying architecture while using different arm-tube materials. The TA-SF9 uses stainless steel, the TA-AF9/10 alumina ceramic, and the TA-CF9/10 monocrystalline sapphire. Each material brings different mechanical properties to the same fundamental design, giving each arm its own expression of Korf’s engineering priorities.

All three use Korf’s zero-friction, zero-stiction flexure horizontal bearing and a fixed alumina ceramic headshell. Magnetic anti-skating, precise VTA and azimuth adjustment, and a screw-adjusted counterweight make setup repeatable and help the arm remain correctly adjusted over time.

Korf TA-AF9/10 fixed-headshell tonearm with white alumina ceramic arm tube viewed from above.

Korf TA-SF9

Stainless steel · 9 inch

The TA-SF9 is the steel implementation of Korf’s fixed-headshell architecture. Its stainless-steel arm tube is paired with the same rigid ceramic headshell concept and flexure-bearing approach that define the range.

With a 19-gram effective mass, it is also the lightest of the three designs. The SF9 brings Korf’s core engineering priorities together in the simplest expression of the fixed-headshell design.

Price: $2,500

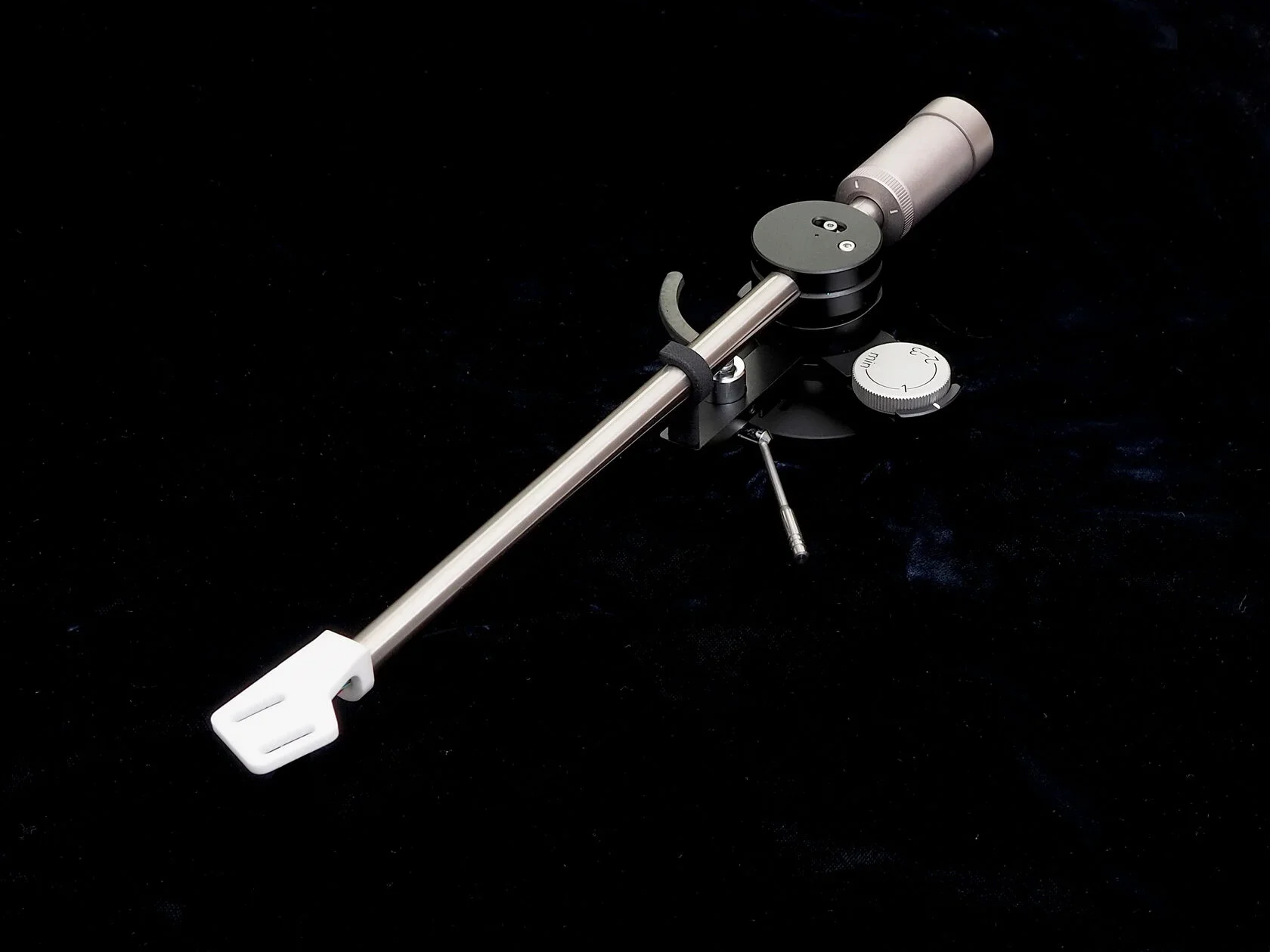

Korf TA-SF9 fixed-headshell tonearm with stainless-steel arm tube and white ceramic headshell.

Korf TA-AF9/10

Alumina ceramic · 9 or 10 inch

The TA-AF replaces the steel arm tube with alumina ceramic, extending the use of ceramic from the headshell through the arm tube itself. The result is an exceptionally rigid structure designed to minimize flex while controlling the way mechanical energy travels through the arm.

This is the Korf we know firsthand at Backbeat Audio. Installed on our Dr. Feickert Blackbird with a Benz Micro Ruby Z, the AF retained the cartridge’s warmth, natural tonal color, excellent tracking, and remarkably quiet behavior in the groove while revealing greater agility, dynamic contrast, and low-level detail. The Ruby Z didn’t become a different cartridge. It simply showed us more of what it could do.

Price: $4,500

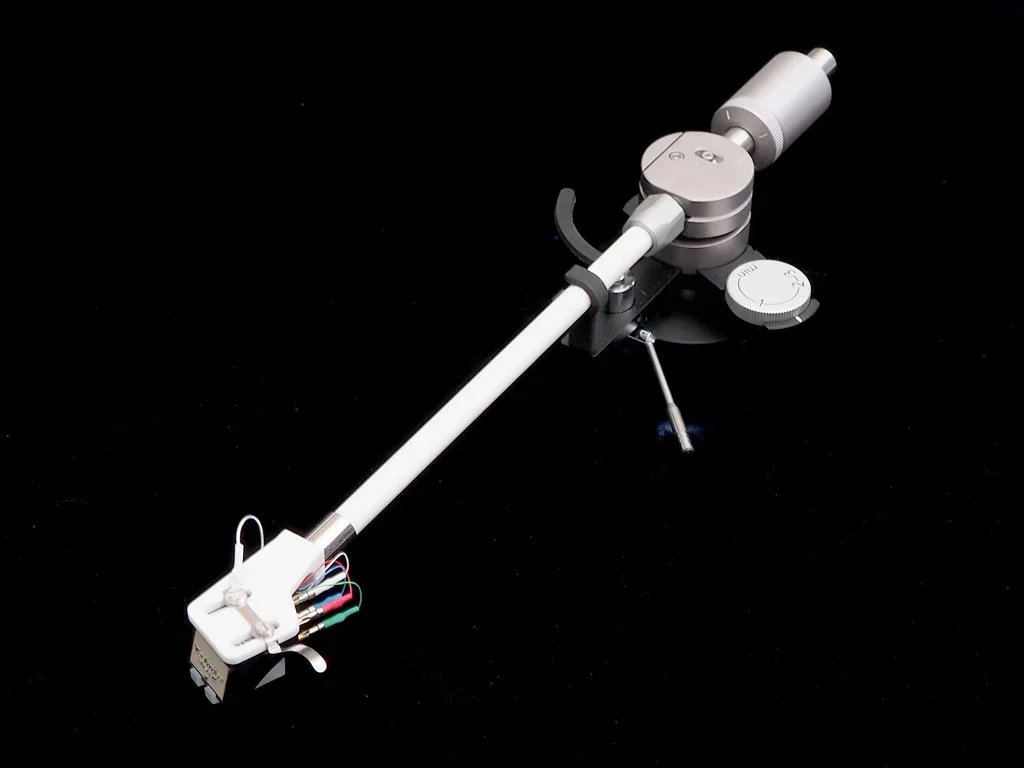

Korf TA-AF9/10 fixed-headshell tonearm with white alumina ceramic arm tube and ceramic headshell.

Korf TA-CF9/10

The TA-CF takes the same architecture in another direction with an arm tube made from monocrystalline sapphire. Its exceptional rigidity allows Korf to further reduce the contribution of the arm tube itself, placing greater emphasis on transmitting what is happening at the stylus without adding mechanical character of its own.

At 28 grams effective mass, the CF is also mechanically distinct from the SF and AF. It is intended for analog front ends capable of resolving the very small differences its sapphire construction is designed to preserve.

Price: $6,100

Korf TA-CF9/10 fixed-headshell tonearm with transparent monocrystalline sapphire arm tube and ceramic headshell.

Choosing a Korf Tonearm

Across the SF, AF, and CF, different materials change the mechanical behavior of the structure while the architecture and Korf’s underlying priorities remain consistent. That makes choosing among them a question of the turntable they will become part of, the performance of the rest of the analog front end, and what the listener wants that combination to accomplish.

At Backbeat Audio, the TA-AF10 is installed on our Dr. Feickert Blackbird and available to hear by appointment. We can help determine which Korf arm makes sense for your setup.

Close-up of the Korf tonearm bearing assembly, mounting shaft, and arm tube.

Specifications




        TA-SF9
        TA-AF9/10
        TA-CF9/10



        Arm tube:
        Stainless steel
        Alumina ceramic
        Monocrystalline sapphire


        Available lengths:
        9-inch
        9-inch / 10-inch
        9-inch / 10-inch


        Effective length:
        229mm
        229mm / 245mm
        229mm / 245mm


        Pivot-to-spindle:
        214mm
        214mm / 230mm
        214mm / 230mm


        Offset angle:
        22°
        22°
        22°


        Effective mass:
        19g
        21g
        28g


        Headshell:
        Fixed alumina ceramic
        Fixed alumina ceramic
        Fixed alumina ceramic


        Horizontal bearing:
        Flexure pivot
        Flexure pivot
        Flexure pivot


        Vertical bearings:
        Ceramic hybrid rolling bearings
        Ceramic rolling bearings
        Ceramic rolling bearings


        Balance:
        Static
        Static
        Static


        Cartridge mass:
        5–15g
        5–15g
        5–15g


        Internal wiring:
        OCC Litz
        6N OCC Litz
        6N OCC Litz


        Cable connection:
        5-pin MDIN
        5-pin MDIN
        5-pin MDIN


        Mounting:
        JIS/Linn or SME
        JIS/Linn or SME
        JIS/Linn or SME


        Price:
        $2,500
        $4,500
        $6,100
